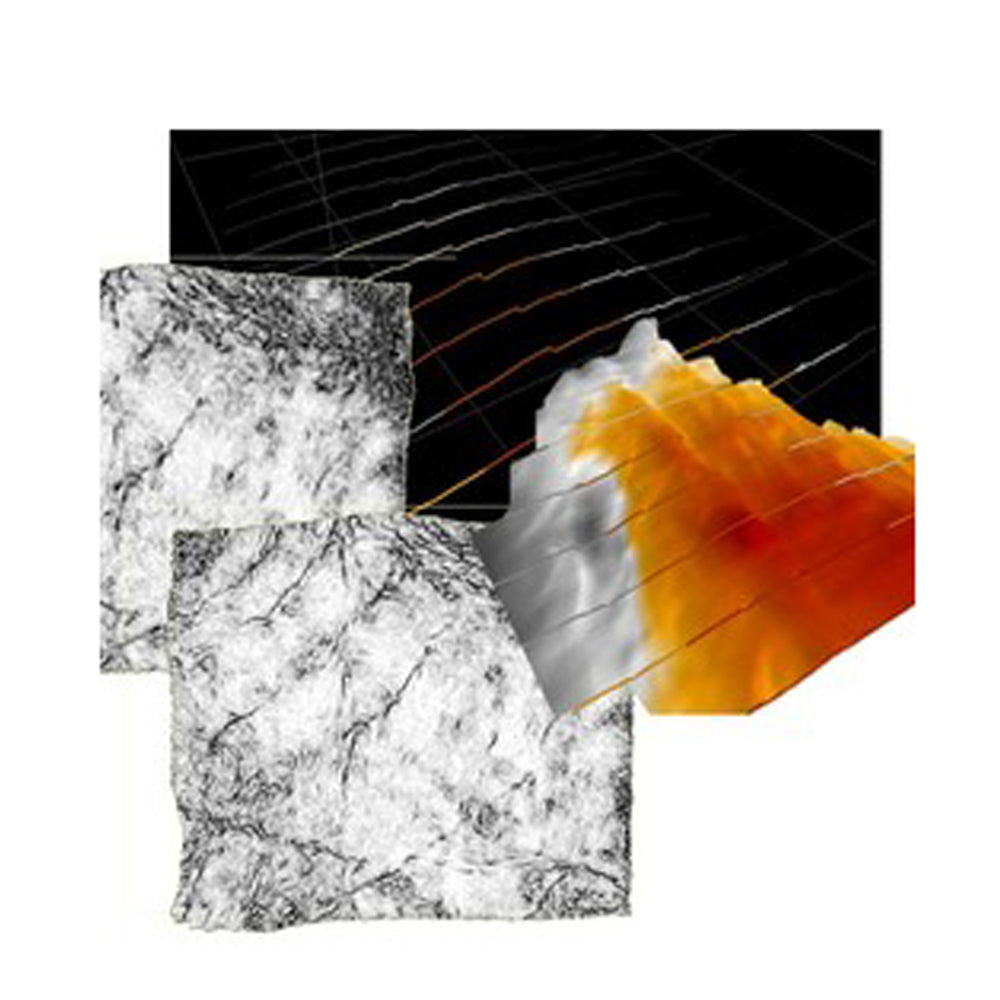

01 Dip Steering

Allows you to create and use "steering cubes". A steering cube contains at every sample position the local dip and azimuth of the seismic events. Plugin by dGB Earth Sciences.

*All commercial products need OpendTect Pro to run. The licenses can only be used on a single node. For information about perpetual, floating and/or annual licenses please contact info@dgbes.com

The dip steering plugin allows you to create and use "steering cubes". A steering cube contains the local dip and azimuth of seismic events, at every sample position. The cube is used for:

• Structurally oriented filtering (e.g. dip-steered median filter)
• Improving multi-trace attributes by extracting attribute input along reflectors (e.g. dip-steered similarity)
• Calculating some unique attributes (e.g. Dip & Azimuth, 3D-curvature, and Dip-Variance)
• Auto-tracking horizons either single horizons or in a dense set as is done in the HorizonCube.
